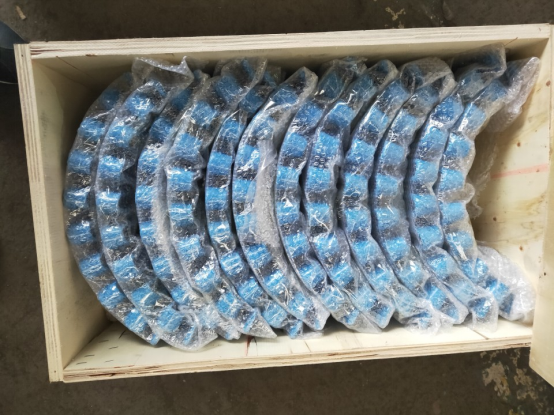

Spring (Grid) of Grid coupling

The torque range of the grid is 45N·M~800000N·M, the relative radial displacement is 0.5mm~3mm, the axial displacement is 4mm~20 mm, and the angular displacement is 1°15≤m.

Densen Group supply two series of grid: JS series coupling grid and T series grid for JS grid coupling (JB/T 8869-2000) and T10/T20 grid coupling.

The torque range of the grid is 45N·M~800000N·M, the relative radial displacement is 0.5mm~3mm, the axial displacement is 4mm~20 mm, and the angular displacement is 1°15≤m.

Densen Group supply two series of grid: JS series coupling grid and T series grid for JS grid coupling (JB/T 8869-2000) and T10/T20 grid coupling.

In the mechanical transmission system, the spring acts as a buffer to transmit torque. Because of its high transmission efficiency, safe starting, simple structure, and convenient disassembly and assembly of the supporting coil spring coupling, its products are widely used in equipment such as metallurgical mines, cranes, oil extraction, shipbuilding, coal and carbon mining.
